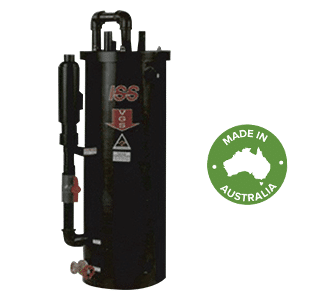

Vertical Gravity Separator

Features

  • Easy to clean
  • Easy to maintain
  • Low flammability
  • Range of flow rates
  • Minimises floor space
  • Highest grade materials
  • Drain waste into container
  • Light weight and easy to move
  • Low cost modular design
  • Meets authority requirements
  • Efficient removal of suspended solids
  • No removal of plates simply back flush
  • Able to handle high concentration of oils

Ranges and Flow Rates

  • No need to remove the plates for cleaning
  • Five minute backwash cleaning cycle
  • Ongoing savings on labor costs
  • No high pressure hose downs
  • No oil stained clothes

Maintenance


Litres/HourModels
1000 l/hrVGS1000PCVGS1000PI VGS1000SS
1500L/hrVGS1500PCVGS1500PI
VGS1500SS
2000 l/hrVGS2000PIVGS2000SS
2500 l/hrVGS2500PI VGS2500SS
3000 l/hr VGS3000PI VGS3000SS

Ingenious Control

The VGS operates by ingenious control of both fluid velocity and pressure. These forces gently coax non emulsified impurities from water by allowing high density contaminants to fall into a sludge retaining area at the bottom of the vessel, and oil droplets and low density suspended solids to rise to the top of the vessel. The oil and suspended solids then drain off into a waste tank for disposal.

Vertical Gravity Separator – Brochure
